Item Number
HSHD-RED-PKG
Loading...
Loading...
Loading...
Loading...
Description

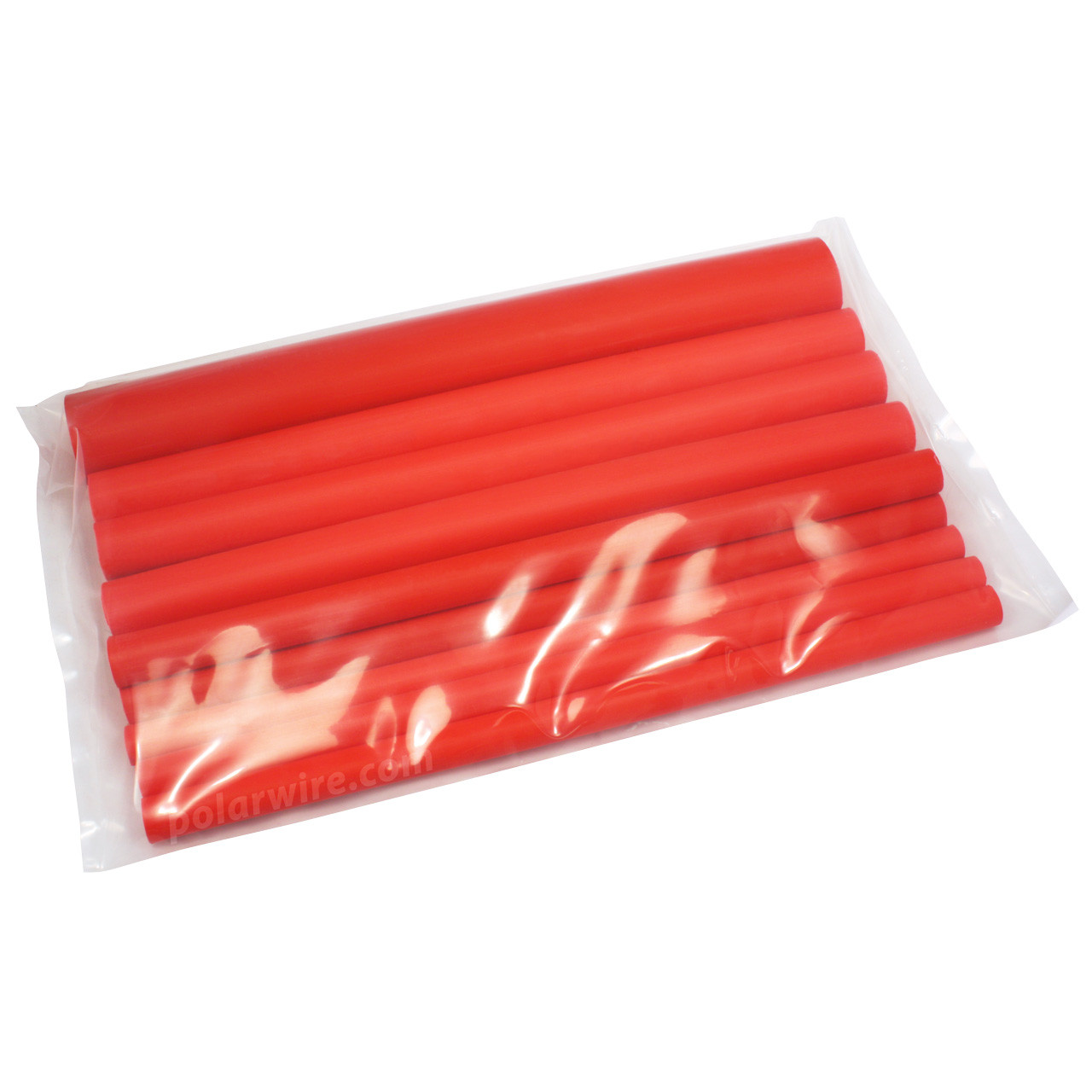

Red Heavy Duty Heat Shrink Pack
Adhesive lined
12 inch lengths of red adhesive lined heavy wall heat shrink tubing in four of our most popular sizes
Impact, abrasion, corrosion, and chemical resistant
- 10 pieces
- 3 each of 3/8" (0350), 1/2" (0500), 3/4" (0750)
- 1 each of 1" (1100)
Need specific parts? Call us to create your own custom kit from our extensive inventory!
Features:
- Seals out water and dirt
- High 3 to 1 shrink ratio
- Meets UL 224, Halogen Free, SAE, REACH, RoHS Compliant
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 120°C
Applications:
- Ideal for insulation of electrical splices, cable terminations, and electrical connections
- Provides mechanical protection, insulation and strain relief
- Adhesive liner bonds to a variety of materials including plastics, rubbers, and metals
- Seals and protects components from moisture and corrosion
- 3:1 shrink ratio covers a broad range of applications in fewer sizes
Approvals and Compliance:
- RoHS Compliant
- Ul 224
- SAE
- REACH
- VW1 Flame Retardant
- Halogen Free
-55°C to 110°C
Sizes
Our 3:1 ratio shrink is ideal for covering both regular and irregular shapes. For the best balance of recovered wall thickness and adhesive sealant performance, choose a size with an expanded diameter (D) that is about twice the largest diameter of the part to be covered.
| PART NUMBER | EXPANDED INSIDE DIAMETER (D) | RECOVERED INSIDE DIAMETER (d) | RECOVERED WALL THICKNESS (w) | ||||
|---|---|---|---|---|---|---|---|
| RED | Qty | INCHES | MM | INCHES | MM | INCHES | MM |
| HSHD-0350-RD | 3 | 0.35 | 9.0 | 0.12 | 3.0 | 0.08 | 2.0 |
| HSHD-0500-RD | 3 | 0.51 | 13.0 | 0.16 | 4.0 | 0.09 | 2.4 |
| HSHD-0750-RD | 3 | 0.75 | 19.0 | 0.20 | 5.0 | 0.10 | 2.5 |
| HSHD-1100-RD | 1 | 1.30 | 33. | 0.31 | 8. | 0.13 | 3.2 |
Specifications
| PROPERTY | TYPICAL VALUE |
|---|---|
| Shrink Ratio | >3 to 1 |
| Operating Temperature | -55°C ~ 125°C |
| Tensile Strength | 14.5 MPa |
| Ultimate Elongation | ≥450% |
| Tensile Strength After Aging | 13.5 MPa |
| Ultimate Elongation After Aging | 400% |
| Concentricity | 70 |
| Longitudinal Shrinkage | 5 |
| Dielectric Strength | ≥21kV/mm |
| Cracking Resistance | No Cracking |
| ADHESIVE | |
| Water Absorbtivity | 0.15% |
| Softening Point | 85°C |
| Peel Strength | 8N/25mm |
| Copper Stability | Pass |
| Antibacterial Property | Pass |
