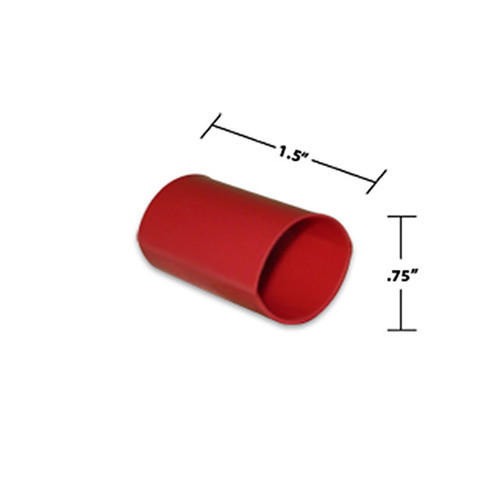

3/4" Dual Wall Heat Shrink Tubing
Cut piece 1 1/2" Length

Dual wall adhesive lined heat shrink tubing with environmental sealing capability is ideal for a variety of applications including automotive and marine wire harness bundles, industrial splices, breakouts, and connector to cable transitions.

Features:

• Flame retardant
• Superior sealing against water and contaminants
• High 3 to 1 shrink ratio allows for coverage of irregularly shaped connectors and components
• Inner adhesive bonds to plastics, rubber, copper, steel, neoprene, and polyethylene
• Continuous operating temperature: -55°C to 110°C
• Shrink temperature: 120°C
• Flexible

Applications:

• Industrial, electronic, and automotive OEM approvals
• Environmental sealing and strain relief of connectors and terminals
• Moisture sealing and electrical insulation of simple inline splices
• Abrasion resistance for tubes and pipes
• Repair of damaged wire harnesses

-55°C to 110°C

Ordering Guidelines:

Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.

HSBLK
D: 3/4 in. (19.1mm)
d: 0.250 in. (6.4mm)
w: 0.070 in. (1.8mm)
