Item Number
HS-KIT-12-COLOR
Loading...
Loading...
Loading...
Loading...
Description

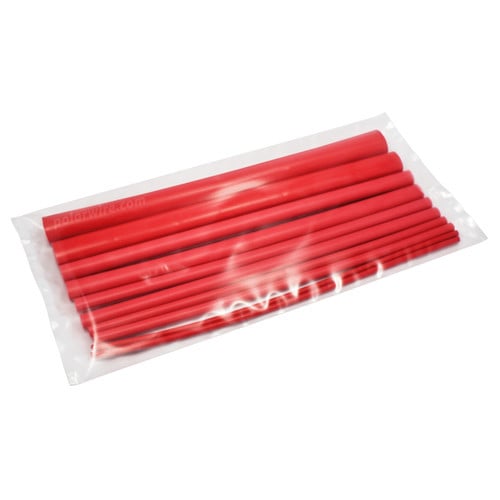

Heat Shrink Pack
Stocked with our popular sizes of adhesive-lined heat shrink tubing in 12 inch lengths
- 10 pieces
- 2 each of 1/8", 1/4", 3/8", 1/2", 3/4"
- Shrinks 3:1 ratio
- Adhesive lined
- Dual Wall
Need specific parts? Call us to create your own custom kit from our extensive inventory!
Flexible, Halogen-Free, Flame Retardant Heat Shrink
Flexible dual wall heat shrink can be used in a variety of applications and excels where environmental issues are a concern. When applying heat to shrink the tubing, the adhesive lining melts and flows to provide an excellent barrier from fluids, corrosion, and moisture. When fully recovered, the 3:1 material will shrink to one third of its original diameter. The tubing's wall thickness also changes proportionally to the degree of recovery.
Features:
- High 3 to 1 shrink ratio
- Seals and protects components from moisture and corrosion
- Good mechanical strength for protection, insulation and strain relief
- Operating temperature range: -55°C to 125°C (-67°F to 257°F)
- Minimum shrink temperature: 110°C (230°F)
Applications:
- Ideal for connector sealing, breakouts, and connector to cable transitions
- Automotive and marine wire harness bundles, and cable repair
- Covering for components and other electronics or electrical connections
- Adhesive liner bonds to a variety of materials including plastics, rubbers, and metals
- The high 3:1 shrink ratio allows repair of most damaged jackets without removing connectors
Approvals and Compliance:
- UL and CUL Recognized
- UL 224
- RoHS Compliant
- F Mark
- REACH
- VW1 Flame Retardant
- Halogen Free
-55°C to 125°C
Specifications
| EXPANDED INSIDE DIAMETER (D) | RECOVERED INSIDE DIAMETER (d) | RECOVERED WALL THICKNESS (w) | |||||
|---|---|---|---|---|---|---|---|
| SIZE | PART NO. | inches | mm | inches | mm | inches | mm |
| 1/8 | HS-0125 | 0.142 ± .016 | 3.60 ± 0.04 | 0.039 | 1.0 | 0.033 ± 0.010 | 0.85 ± 0.25 |
| 1/4 | HS-0250 | 0.272 ± .020 | 6.90 ± 0.05 | 0.079 | 2.0 | 0.043 ± 0.010 | 1.10 ± 0.25 |
| 3/8 | HS-0375 | 0.390 ± 0.020 | 9.90 ± 0.05 | 0.118 | 3.0 | 0.057 ± 0.010 | 1.45 ± 0.25 |
| 1/2 | HS-0500 | 0.524 ± .024 | 13.3 ± 0.06 | 0.157 | 4.0 | 0.059 ± 0.014 | 1.50 ± 0.35 |
| 3/4 | HS-0750 | 0.776 ± .028 | 19.7 ± 0.07 | 0.236 | 6.0 | 0.079 ± 0.018 | 2.00 ± 0.45 |
| PROPERTY | TYPICAL VALUE |
|---|---|
| Shrink Ratio | >3 to 1 |
| Shrink Temperature | 110°C |
| Operating Temperature Range | -55°C to 125°C |
| Tensile Strength | ≥10.4 MPa |
| Dielectric Voltage Withstand | 600v |
| Ultimate Elongation | ≥200% |
| Radial Shrinking Ratio | ≥50% |
| Longitudinal Change | ≤15% |
| Aging in Circulating-Air Oven | 158.0±1.0°C, 168 hrs |
| Tensile Strength After Aging | ≥7.3 MPa |
| Ultimate Elongation After Aging | ≥100% |
| Dielectric Strength | ≥15kV/mm |
| Volume Resistivity | ≥1013 Ω cm |
| Flammability | VW-1 |
| Water Absorption | <0.4% |
| Fluid Resistance | Excellent |
| Adhesive Softening Point | 85±5°C |
| Adhesive Peel Strength | >80N/25mm |
