Product Description

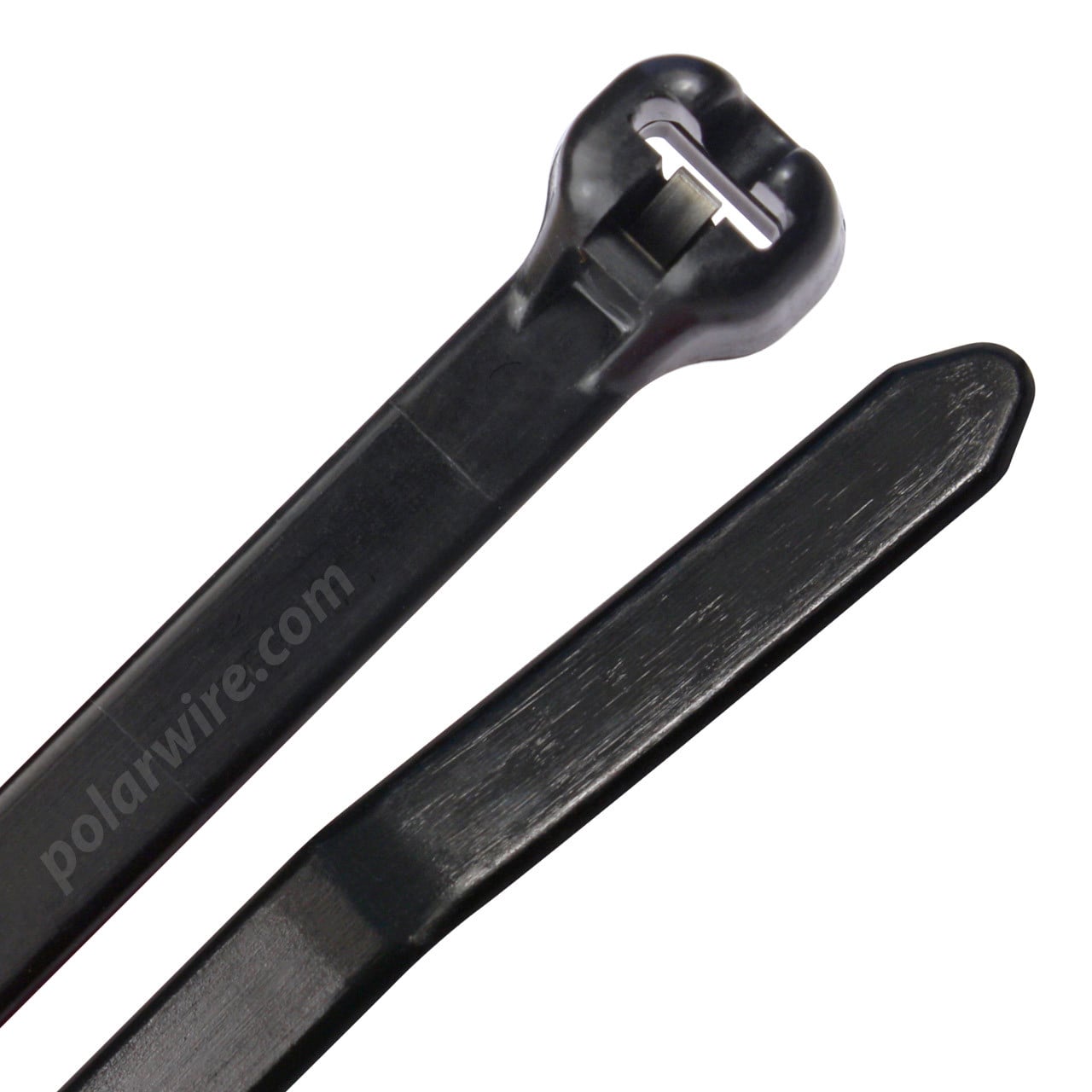

Dome-Top® Barb Ty
Weather Resistant
Nylon 6.6 Locking Cable Tie with Metal Barb
15.1" (384mm) Length
50 lb Minimum Tensile Strength
100 qty
Panduit part number: BT4S-M0
Weather Resistant Ties offer greater resistance to damage caused by ultraviolet light and are suitable for both indoor and outdoor use. Use to bundle and secure wire and cable, as well as a wide array of other fastening and securing applications
Features:
- Black weather resistant 6.6 Nylon
- Standard cross section
- Indoor/outdoor use
- Dome-Top® head features unique patented design with smooth, rounded edges
- Stainless steel locking barb adds strength, ensures consistent performance and reliability, and provides infinite adjustability through entire bundle range
- Curved tip for easy pick up from flat surfaces and faster threading
- Ribbed and stippled strap body prevents lateral movement on the bundle
- High loop tensile strength exceeds industry standards
- Patented low thread force design reduces operator fatigue and improves productivity
- May be installed in temperatures as low as -4°F (-20°C)
- Rated for continuous use from -76°F (-60°C) to 185°F (85°C)
- UL Compliant, UL Listed, CE Compliant, CSA Certified, RoHS Compliant
- Engineered and manufactured for maximum performance and quality
-76°F (-60°C) to 185°F (85°C)
PW528MX Specifications:
| Nylon 6.6 | Weather Resistant |
| Color | Black |
| Locking Barb | Stainless Steel |
| Environment | Outdoor (UV Resistant) |
| Cross Section | Standard |
| Length | 15.1" (384mm) |
| Width | 0.185" (4.7mm) |
| Thickness | 0.052" (1.3mm) |
| Max Bundle Diameter | 4.00" (102mm) |
| Min Loop Tensile Strength | 50 lbs (222 N) |
| Continuous Use Temperature Range | -76°F (-60°C) to 185°F (85°C) |
| Installation Temperature | to -4°F (-20°C) |
| Operating Temperature | -76°F (-60°C) to 185°F (85°C) |
CE Compliant
CSA Certified
UL 62275 Compliant (Type 2, 21)
UL Listed (File #E56854)
RoHS Compliant
