Product Description
5/8" Cable Tie Base
Natural
18–50 lb pull
Screw Mount
100 qty

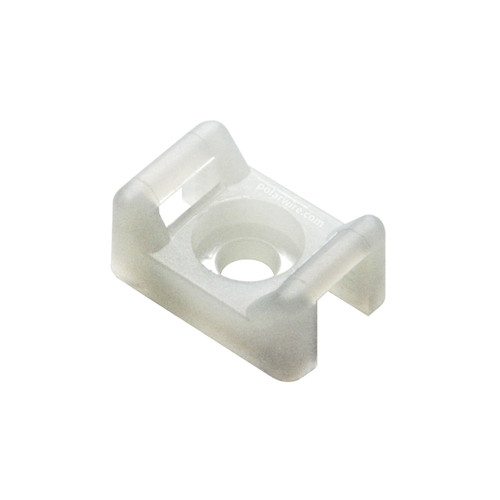

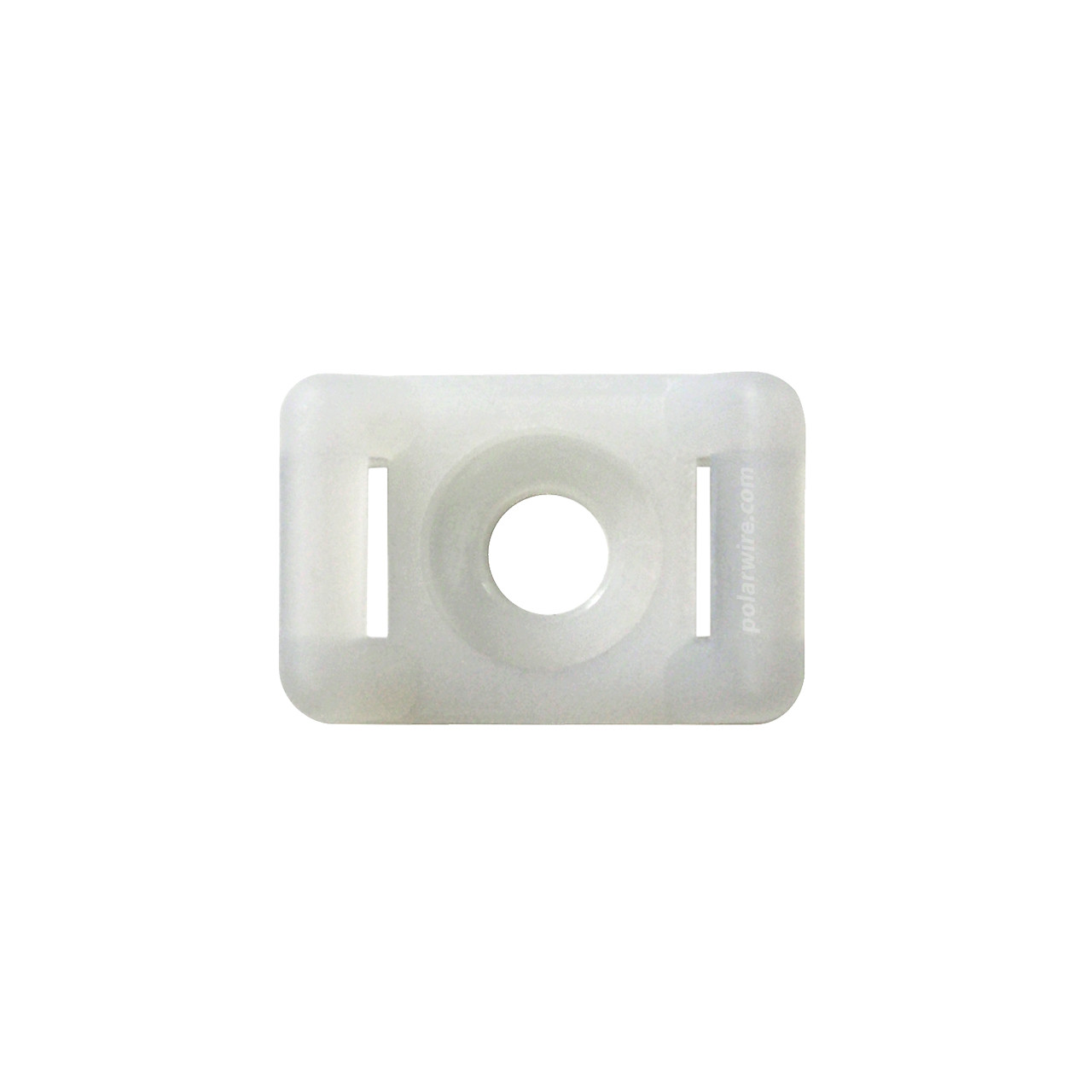

Natural 6.6 Nylon Cable Tie Mount
Natural color saddle mount zip tie base installs with a #8 (M4) screw (not included). Made of nylon 6.6 for increased mechanical strength, heat and wear resistance, and stiffness in indoor environments
Features:
- Natural 6.6 Nylon
- Heat and wear resistant
- Indoor use
- Accepts ties up to .19" wide
- Engineered and manufactured for maximum performance and quality
- -76°F (-60°C) to 185°F (85°C)
- CE Compliant
- UL Recognized (File #E136577)
- RoHS Compliant
CTM1W Specifications
| Material | Nylon 6.6 |
| Color | Natural |
| Mounting Screw Size | #8 (M4) |
| Hole Diameter | .15" (3.8mm) |
| Counterbore Diameter | .29" (7mm) |
| Use with Cable Tie Cross Section Type: | Miniature, Intermediate, Standard |
| Slot Width | .25" (6.3mm) |
| Slot Height | .09" (2.3mm) |
| Height | .28" (7mm) |
| Length | .63" (16mm) |
| Width | .43" (10.8mm) |
| Environment | Indoor |
| Temperature Range | -76°F (-60°C) to 185°F (85°C) |
| Compliances | CE Compliant UL Recognized (File #E136577) RoHS Compliant |
Product Videos
Custom Field
Pricing Unit 100
